Morton Vision Top 2m Wide Screens
Dispatched within 10 working days
- Includes 2 x 1000mm wide screens linked together using 2 way link strip.
- Finished in White, Silver or Black Paintwork
- Clear acrylic as standard. Frosted acrylic available on request
- 12mm Acoustic foam on both sides of the Upholstered section
- Perspex is 480mm down from the top of the screen.
- The Glazed Vision Screens is finished in high quality Perspex.
About the Morton Vision Top 2m Wide Screens
The Morton Vision Top design has a fusion of acrylic and acoustic panels to achieve the multi-functional office screen. Finished with a 480mm acrylic section at the top of the partition which can act as a window when using the clear acrylic option. However, if frosted acrylic is a preference, a more private effect is possible.
Creating the 2m width with x2 1m wide vision top screens that are available in various height options. Utilising the linking facility we’ve connected the 1m wide screens together with a flexible linking strip. The strip slots into the side of the screens and gives a solid connection and can be angled as well as used in a straight line.
For the acoustic base section, the Morton Vision Top Office Screens are manufactured with a solid core and 12mm acoustic foam on each side. The use of acoustic foam and woven fabric are the perfect pairing to absorb noise and make an impact and control noise levels. To complete the base section, there are over 10 fabric colours to work well with the black, white or silver aluminium frame. Matching stability feet are supplied for a trip and wheelchair friendly freestanding office partition.
View more size options from the Morton Vision Top Office Screens.
What are the benefits of the Morton Vision Top 2m Wide Screens?
- Divides a 2m width
- Combines acrylic & acoustic panels
- Made to order
- Over 10 fabric colours available
- Linking office screen design
All glazed office screens and partition walls are made in the UK, by Rap Industries.
The Morton Office Partitions are upholstered both sides in our Woven Fabric range, which has a result of 40,000 rubs on the Martindale cycle test. The Woven fabric has also been tested in accordance with BS EN 1021 - 1 for flame retardancy.
PLEASE NOTE: These colour samples are for guidance and representation only. Due to limitations with colour screen viewing, accuracy cannot be guaranteed. Fabric samples are available on request. Please call our customer service team on 01733 394941.
Product specifications for the Morton Vision Office Screen range.
Frame Measurements
Frame thickness - 28mm
Frame width - (side bars) - 50mm / (Top & bottom bar) - 22mm
Acoustic screen thickness (Core, foam & fabric) - 42mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Materials
Frame - Powder coated aluminium
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Acrylic - 3mm clear and frosted acrylic
White gloss laminate - HPL (high pressure laminate)
Internal - 18mm solid core
Foam - 12mm fire retardant acoustic foam
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Aluminium
Extrusions has a melting of 660°C and is not considered to be a fire hazard.
Steel
Components are not considered to be a fire hazard.
Acrylic
Tested to BS 476 Part 7 with a Class 3 classification
Laminate
Tested to standard UNE EN 13501-1:07+A1:2010
Fabric
Woven Fabric - Morton Standard
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric - Morton+
Universe Collection has been tested to BS 5867-2: 2008 Type B
Are the Morton Visions still acoustic?
The Morton Vision version with the acoustic base, has some level of acoustic property. But due to addition of acrylic, the partition isn’t as acoustically effective as the Morton Acoustic Office Screen.
The Morton Vision with the laminate bases offer no acoustic properties due to the hard material of the acrylic and laminate.

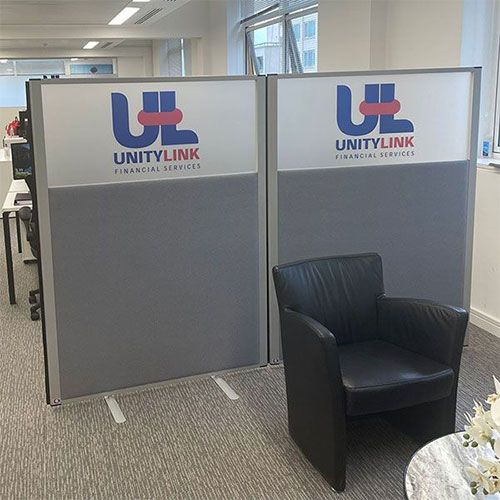

Can I add a logo to the acrylic section?
Yes, on the full, half and top vision it’s possible to add a logo, or custom print of choice on to the acrylic section of the divider.
Can I use different Morton Screens together?
It’s possible to link and use any of the Morton Vision and Standard Acoustic Screens together. All screens are supplied with a flexible linking strip so your configuration can be created from arrival.
Is it possible to return screening?
As we make each screen to order based on the selected size, fabric and frame colour, we’re unable to accept returns. Our full T&C’s can be found here.
