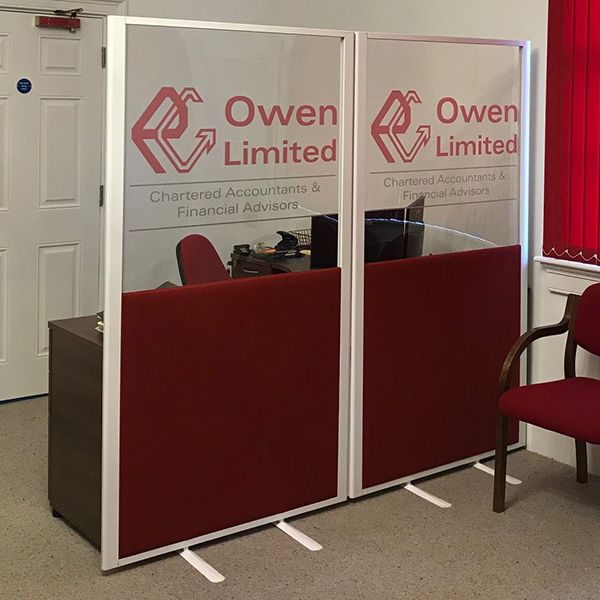

Morton Half Vision 2m Wide Office Screens
Dispatched within 10 working days
- Includes 2 x 1000mm wide screens linked together using 2 way link strip.
- Clear acrylic as standard. Frosted acrylic available on request
- Finished in White, Silver or Black Paintwork
- 12mm Acoustic foam on both sides of upholstered section.
- Acrylic is Half Screen Height - e.g.1800mm H screen= 900mm.
- Print can be added to perspex section, not included as standard
About the Morton Half Vision 2m Wide Office Screens
Designed with a 50/50 split, the Morton half Vision office screens combine an acrylic and acoustic panel to accommodate multiple work environments. The top section consists of an acrylic panel, available as clear or frosted acrylic, each of which are used for different purposes. Frosted acrylic combined with an acoustic base will help with privacy, instead of full visibility that is achievable with a clear acrylic.
The base section is created with 12mm acoustic foam and a solid core, that brings elements of the acoustic properties into the workspace. Acoustic foam and fabric work to absorb noise and create a quieter working space for the entire team.
To compliment the choice of acrylic and fabrics, the high quality aluminium frame is available in white, silver or black and paired with a set of matching stability feet. The stability feet have a profiled design which makes the trip and wheelchair friendly, allowing the Morton half Vision 2m Wide Office Screens to be placed safely across all open spaces.
To cover the 2m width, we’ve connected 2 1m wide screens with a flexible linking strip. The flexibility of the linking strips works well for a straight or angled configuration.
Need to extend the 2m width? Shop the Morton Half Vision Office Screens.
What are the benefits of the Morton Half Vision 2m Wide Office Screens?
- Combined materials
- Linkable office screen design
- Acoustic base panel for noise control
- Easy to install
- Made to order
All glazed office screens and partition walls are made in the UK, by Rap Industries.
PLEASE NOTE: These colour samples are for guidance and representation only. Due to limitations with colour screen viewing, accuracy cannot be guaranteed. Fabric samples are available on request. Please call our customer service team on 01733 394941.
Product specifications for the Morton Vision Office Screen range.
Frame Measurements
Frame thickness - 28mm
Frame width - (side bars) - 50mm / (Top & bottom bar) - 22mm
Acoustic screen thickness (Core, foam & fabric) - 42mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Materials
Frame - Powder coated aluminium
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Acrylic - 3mm clear and frosted acrylic
White gloss laminate - HPL (high pressure laminate)
Internal - 18mm solid core
Foam - 12mm fire retardant acoustic foam
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Aluminium
Extrusions has a melting of 660°C and is not considered to be a fire hazard.
Steel
Components are not considered to be a fire hazard.
Acrylic
Tested to BS 476 Part 7 with a Class 3 classification
Laminate
Tested to standard UNE EN 13501-1:07+A1:2010
Fabric
Woven Fabric - Morton Standard
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric - Morton+
Universe Collection has been tested to BS 5867-2: 2008 Type B
Are the Morton Visions still acoustic?
The Morton Vision version with the acoustic base, has some level of acoustic property. But due to addition of acrylic, the partition isn’t as acoustically effective as the Morton Acoustic Office Screen.
The Morton Vision with the laminate bases offer no acoustic properties due to the hard material of the acrylic and laminate.
Can I add a logo to the acrylic section?
Yes, on the full, half and top vision it’s possible to add a logo, or custom print of choice on to the acrylic section of the divider.
Can I use different Morton Screens together?
It’s possible to link and use any of the Morton Vision and Standard Acoustic Screens together. All screens are supplied with a flexible linking strip so your configuration can be created from arrival.
Is it possible to return screening?
As we make each screen to order based on the selected size, fabric and frame colour, we’re unable to accept returns. Our full T&C’s can be found here.
