Mobi Printed 5 Panel Room Dividers
Dispatched within 7 working days
- Supplied with your custom printed artwork fitted on both sides.
- Finished with a Slim Aluminium Silver frame
- Each Panel is 687mm wide. Total width is 3450mm.
- Available in 3 heights 1200mm, 1500mm & 1800mm.
- Mobi system height shown is approx including the castor feet.
- Manufacutred with a lightweight core
- Manufactured and designed in the UK by Rap Industries
NHS, Government & Education Purchase Orders accepted - Please continue to checkout

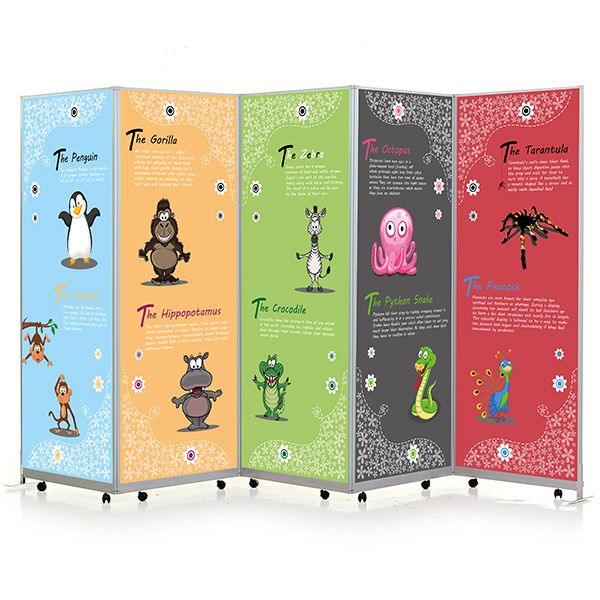

About the Mobi Printed 5 Panel Room Dividers
The 5 Panel Mobi Room Dividers are made with 5 slimline panels all of which are completed with your print of choice. Either create your own design or select from our educational designs which we’ve done for you, all you need to do is let us know which design you’d like.
When it comes to dividing a space, wheel the partition into place and position the panels into the configuration that compliments the room. Utilise the concertina element to arrange the panels into various shapes and angle the panels for the perfect fit. Should you be using all 5 panel in a straight line, then the supplied stability feet should be added on to the end of the panels as well as using the central foot. We have 3 height options available - 1200mm, 1500mm & 1800mm, designed to add various level of privacy to the divided areas.
Covering 3450mm, the 5 Panel Printed Mobi Room Divider has a wide span and, in some environments, might not be suitable for permanent use. Fortunately, the lightweight portable panels and concertina design ensure the unit can be folded and stored or taken to another area that requires division.
Discover the 3 Panel Printed Room Divider for a more compact design
What are the benefits of the Mobi Printed 5 Panel Room Divider?
- Accepts custom artwork
- Double sided printed panels
- Portable design
- Concertina panels
- Lightweight design
All portable room dividers and partitions walls are made in the UK, by Rap Industries.
Product specifications for the Mobi Portable Room Divider Range
Frame & panel measurements
Frame thickness - 11mm
Frame width (Top Bar) - 15mm /(Bottom Bar) - 47mm
Panel size - 687mm
Stability feet - 500 x 50 x 4mm
From bottom of panel to floor - 50mm
Materials
Frame - Powder coated aluminium
Castor wheels - Polypropylene
Stability Feet - Steel
*Stability feet are trip and wheelchair friendly with round edges
Fire Safety Elements
Laminate
Tested to standard UNE EN 13501-1:07+A1:2010
Anti-bacterial
Garbe fabric collection has been tested and passed BS 5852 Crib 5 - EN1021 1+2
Flammability performance is dependent upon components used
Loop Nylon
Loop Nylon fabric has been tested to BS 5867-2 : Type B : 2008
Flammability performance is dependent upon components used
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Aluminium
Has a melting of 660°C and is not considered to be a fire hazard.
Panel Finish Information
Easy Clean: HPL (high pressure laminate)
Anti-Bacterial: Garbe Fabric 88% PVC / 12% Poly/Cotton
Fabric: Brushed loop nylon
Printed: Gloss varnish finish
Mobi Screen Printed Artwork Dimensions:
1200mm H Mobi
Artwork size = 1099mm (h) x 657mm (w)
Visible area = 1085mm (h) x 643mm (w)
1500mm H Mobi
Artwork size = 1399mm (h) x 657mm (w)
Visible area = 1385mm (h) x 643mm (w)
1800mm H Mobi
Artwork size = 1699mm (h) x 657mm (w)
Visible area = 1685mm (h) x 643mm (w)
Please allow 14mm on the artwork size for the framework to cover.
The artwork specifications can be found here
Please provide your artwork as a high resolution PDF with no crop or bleed
You can upload your own artwork by clicking the link below or email us at sales@go-displays.co.uk.
Click Here To Use Mail Big File
Are the Mobi Printed Portable Dividers custom printed?
Yes, they are. We will provide you with the artwork specifications, so it’s possible to create artwork ready for us to print.
So feel free to express your self/business with a one of a kind print.
Do you provide any templates?
We’ve created a number of educational artworks which can be selected instead of creating your own artwork. Whether it’s number, words or rhymes – we have an available option.
Do I have a choice in size?
You do, we have a wide range of sizes available for the Mobi Printed Room Divider.
All the panels sizes are the same size at 687mm, but you have a choice of how many panels wide and also 3 different heights. The height options are 1200mm, 1500mm & 1800mm.
