Budget 42mm Curved Acoustic Panels 1.8m High
Dispatched within 7 Working Days
- Includes set of Stabilising feet & 2 way link strip.
- Finished with durable plastic edging - Available in Black or Grey
- The Curve screens are 1131mm wide, 800mm deep.
- Height - 1800mm High
- Manufactured with an 18mm solid core
- Budget Screens have 12mm acoustic foam both sides
- Total screen thickness = 42mm

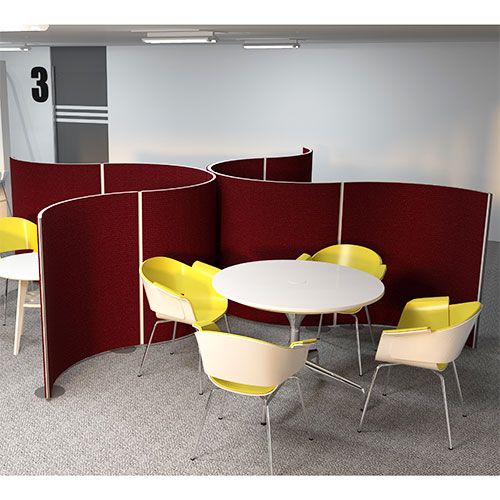

Budget Curved Acoustic Panels 1.8m high
The Budget Curved 1800mm high is an extension of the Budget office screens range and can be used in conjunction with any panel from that range. The curved screen helps when creating different configurations and sits well as a corner screen to construct office pods and private working areas.
Manufactured with 12mm acoustic foam, the Budget panels are a noise absorbing solution. Position into the loudest parts of the office and make a noticeable difference to the noise levels. Acoustic office screens are used as a cost effective method of reducing office noise, whilst making a big difference to productivity and motivation.
Linking the various screens together is possible with the use of the supplied linking strip. By adding the linking strip you have the potential to create a configuration, width and style of choice. As the linking strip is flexible, it’s possible to create 90 degree angles.
Choose from a wide selection of woven fabrics and we’ll manufacture the screen in the chosen size and fabric colour. Finish the partition with black or grey PVC edging and we’ll supply the feet in the matching colour.
What are the benefits?
- Compatible with other Budget Screens
- Helps reduce office noise
- Linkable screen
- Supplied with stability feet (upgrade feet available)
- Wide selection of fabric
All office screens are made in the UK, by Rap Industries.
Product specifications for the Budget Acousic & Pinnable Office Screen range.
Screen Measurements
Acoustic screen thickness (Core, foam & fabric) - 42mm
Pinnable Screen thickness (Core & fabric) - 36mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Wave Screens Only - 300mm Drop
Materials
Edging - PVC
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Castor wheels (upgrade or as part of Budget portable) Raise screen by 77mm & protrude 255mm each side of screen
Round Bases (upgrade) 200mm diametre
Acoustic
Internal - 18mm solid core
Foam - 12mm fire retardant acoustic foam
Pinnable
Internal – 18mm solid core + 8mm pinnable board either side
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Steel
Components are not considered to be a fire hazard.
Fabric
Woven Fabric
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric
Universe Collection has been tested to BS 5867-2: 2008 Type B
