Esteem Acoustic Office Pod
Dispatched within 10 working days
- Strong Aluminium frame with powder coated paintwork in black, white or silver
- Manufactured with 18mm solid core
- Stability feet provided
- Acoustic Offices Screens have 12mm acoustic foam both sides
- All screens supplied to create the Acoustic Office Pod are 2.2m high
*Please note - Furniture not included

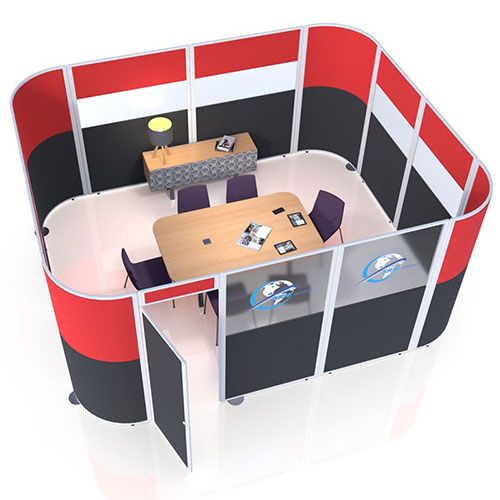

About the Esteem Acoustic Office Pod
The Esteem office pod incorporates a stylish design with many practical components to create a unique way of integrating privacy into open plan environments. With an office pod, there is no need to create permanent rooms. Instead, you can retain the open plan design while installing an acoustic office pod to help create meetings rooms, break rooms or even offices.
Created with screens from the Concept range, the acoustic partitions are split in to 3 part and 2 part screens. The 3 part screens are made up of 2 acoustic panels and an acrylic panel located in the middle. A combination of acrylic and acoustic panels supports a loud environment and doesn’t complete shut off the office, letting natural light shine through.
Not sure which fabric colour to select? That’s not an issue with the 2 & 3 part screens. Choose multiple fabric colours per divider and create a specific combination of colours to match the office.
The acoustic screens are upholstered both sides in our Universe range, which has been tested in accordance with BS 476 Part 7 Class 1, BS5852 0 & 1 for fire retardancy.
View the full Morton Half Vision range to find the full panel size options
What are the benefits of the Esteem Office Pod?
- Acoustic properties to help with noise
- Acrylic window panels for natural light
- Choose multiple fabric colours per screen
- Various sizes available
- Easy to install
All acoustic office screens and office pods are made in the UK, by Rap Industries.
PLEASE NOTE: These colour samples are for guidance and representation only. Due to limitations with colour screen viewing, accuracy cannot be guaranteed. Fabric samples are available on request. Please call our customer service team on 01733 394941.
Product specifications for Acoustic Office Pods
Frame Measurements
Frame thickness - 28mm
Frame width - (side bars) - 50mm / (Top & bottom bar) - 22mm
Acoustic screen thickness (Core, foam & fabric) - 42mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Materials
Frame - Powder coated aluminium
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Acrylic - 3mm clear and frosted acrylic
Internal - 18mm solid core
Foam - 12mm fire retardant acoustic foam
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Aluminium
Extrusions has a melting of 660°C and is not considered to be a fire hazard.
Steel
Components are not considered to be a fire hazard.
Acrylic
Tested to BS 476 Part 7 with a Class 3 classification
Fabric
Woven Fabric
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric
Universe Collection has been tested to BS 5867-2: 2008 Type B
Can I choose more than 1 colour per screen?
Yes you can! We have designed the Concept 2 and 3 part for this reason, so you’re able to choose more than one fabric colour per screen.
Mix and match colours as you create a unique acoustic office screen layout.
Can I add print?
On the full acoustic Concept Partition Screens it’s not possible to add any print, but on the concept screen with the acrylic panel it’s possible.
Add custom print to the acrylic panel in the form of any image, logo, or text.
How long will my screens take?
As the Concept Acoustic Screens are made to order, we require 10 working days to manufacturer and dispatch. We will make the screen to your desired size and colour selections.
Do I need to purchase anything additional to use the Concept Screens?
No, everything you need to get started is included. You’ll receive a set of trip and wheelchair friendly stability feet and a flexible linking strip.
Are the Concept Office Screens portable?
As standard, the Concept screens are supplied with stability feet which aren't portable. Upgrades to castor wheels are available to transform the static partition into a portable solution.
